Product Information

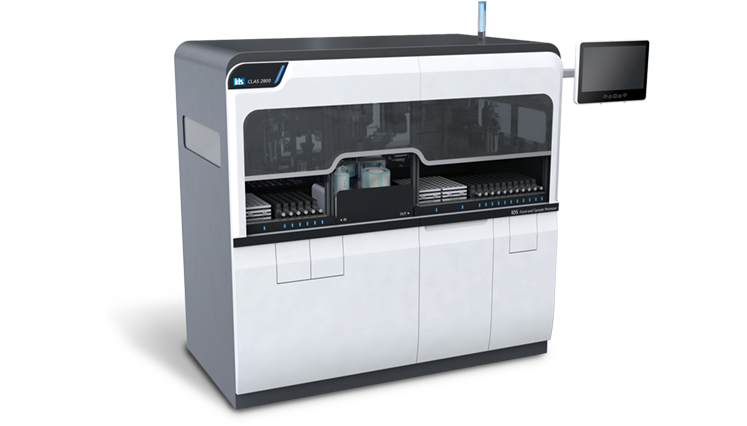

Pre-analytical Sample Processor

IDS-CLAS 2800

Compact Footprint : Designed for the fast processing of small batches of samples.
Highly efficient system : Up to 4 different types of Secondary tubes can be used concurrently.

  • Integrated type
  • 320 samples/hr
  • Connects single tube transportation externally

Features

  • −Multiple functions are consolidated into space-saving system.
  • −Ten-tube rack enables flexible sample processing.
  • −High speed Aliquoter prepares 320 sample/hour.
  • −To cope with outsourcing Lab tests : Up to 4 different secondary tube types can be produced based on the tests ordered.
  • −Analyzer Sample Rack Loading : By using a rack adapter, Analyzer Rack can be placed in the unloading area.
  • −Flexible configuration : Employing single tube transportation technology. Connectable to external transportation systems.

Specifications

Types of Blood collection tube
16φx 100mm,16φx75mm, 13φx100mm, 13φx75mm,Mixed possible.
STAT priority loading
Yes: Up to 10 tubes in one rack
Specimen loading capacity
(Standard Specification)
Primary tube Loading :50～100-tube（Determined by the specification.）
Primary tube Unloading :10～290-tube(Determined by the specification.)
Aliquot tube Unloading :10～290-tube (Determined by the specification.)
Aliquot tube Error Unloading:20-tube Or more (Determined by the specification.)
Sorting & Unloading functions
Primary tubes: Yes, Aliquot tubes: Yes
Aliquot tube
φ13×75mm、φ1６×100ｍｍ tube
Bar code type
NW-7、ITF、CODE39、CODE128: Select one type
Aliquot tip
2,000μL tip (IDS dedicated tip)
Aliquoting precision
Within 3% CV across the entire range. Within 3% CV at 300μL.
Aliquot processing speed
Maximum 320 sample/hour (at 300μL)
Dimensions
1,570mm（W）×850mm（D）×1,500mm（H）, or
61.8 in. (W) x 33.5 in. (D) x 59.0 in. (H).
Weight
Weight: 434 kg, or 956.8 lbs.
Power supply
Single-phase 100 volts AC 15A (including Control PC).

Processing Flow

  • External connection area(Optional)

    Primary samples can be sent out and/or received.

  • Primary tube loading Area

    Loading samples. The barcode is read to determine routing and confirm receipt in the laboratory.
    Error samples are sorted to the error rack adjacent to the primary tube loading area. Available STAT priority rack.

  • Clot detection Area

    Detect the barrier between the cells and serum. Measures the available sample volume.

  • Decapper Area

    Remove sample’s caps. Route uncapped samples to the error rack adjacent to the primary tube unloading area.

  • Secondary tube labeler Area

    Create the requested amount of aliquot tubes with the barcode label.

  • Aliquot Area

    Aliquot the sample from the primary tube to the aliquot tube.

  • Primary tube unloading Area

    Dedicated unloading for primary tubes. Sorting uncapped error and aliquot error tubes to the error rack.

  • Aliquot tube unloading Area

    Dedicated unloading and sorting for secondary tubes. Sorting aliquot error tubes to the error rack.

  • External connection area(Optional)

    Primary samples and Secondary tubes can be sent out and/or received.
